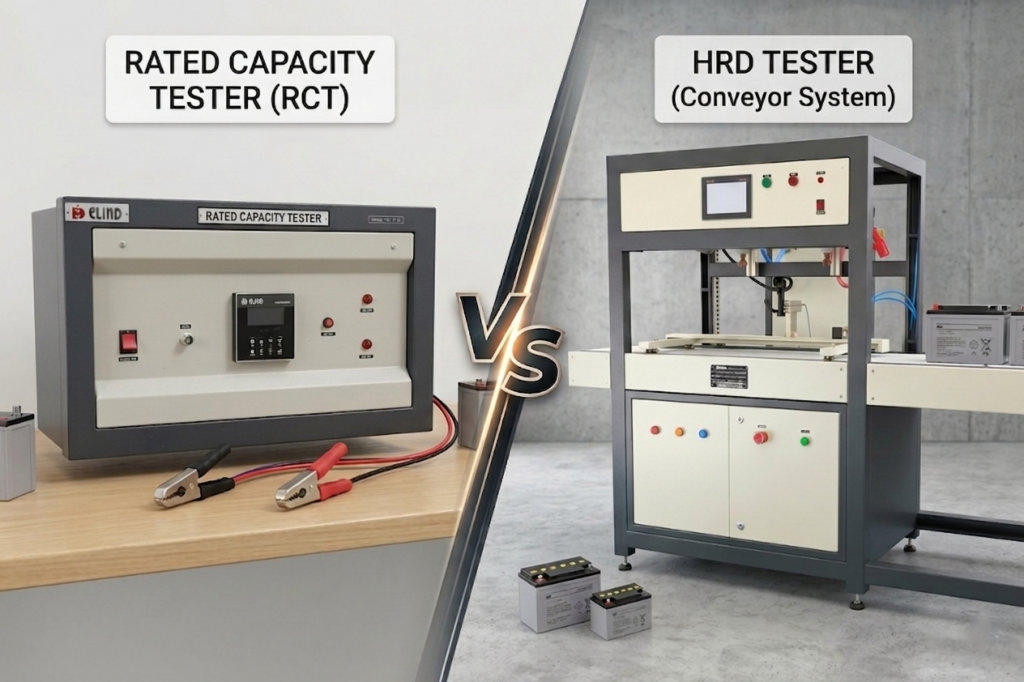

HRD Tester vs Capacity Tester: Which Test Protects Your Line?

Most battery manufacturers start with one testing instrument and make do. Either a capacity tester inherited from the QC lab setup, or an HRD tester added after a run of customer complaints. Rarely both. Rarely placed correctly in the production flow. The result is a QC process that catches some failures and ships the rest. This HRD tester vs capacity tester guide separates what each instrument actually tests, where it belongs in your line, and how to build the case for running both.

Two Tests, Two Different Questions

The HRD tester vs capacity tester comparison starts with a single distinction. A battery rated capacity tester asks: how much energy can this battery store? A high-rate discharge tester asks: can this battery deliver power under real load? These are not the same question. Neither test answers the other.

Capacity testing discharges a battery at a defined C-rate (C₁₀ or C₂₀) over several hours and records the total ampere-hours delivered. The result confirms whether the battery meets its rated Ah before terminal voltage drops to the cutoff. This is the test relevant to standby power applications: UPS banks, inverter systems, telecom backup. A battery that passes a 10-hour discharge at the C₁₀ rate has confirmed its energy storage performance per IS 1651 or IEC 60896-11.

High-rate discharge testing operates on a different principle entirely. The ELIND HRD tester discharges a 12V battery at currents from 300A to 3000A for 3 to 10 seconds. It simulates the sudden, high-current demand that a starting battery faces when an engine turns over, or that an inverter battery faces during grid switchover. What it measures is plate integrity and internal resistance under stress, not energy storage.

The physics are direct: a battery can hold full charge and still fail under high current if plates are sulphated, if an intercell weld is weak, or if curing was incomplete during formation. A capacity test at C₁₀ (typically 5–50A continuous discharge) will not stress that weld enough to reveal the failure. A high-rate discharge at 600A for six seconds will.

[For a detailed explanation of what high-rate discharge testing measures and where it fits in your production QC, see our guide: Battery HRD Tester: Why HRD Is the Last Line of Defence in Your Production QC.]

What Capacity Testing Catches That HRD Cannot

A battery rated capacity tester surfaces failure modes that an HRD test cannot reach at production speed.

Capacity testing catches these:

• Capacity fade from plate degradation across charge-discharge cycles, critical for state-of-health monitoring in battery banks already in service
• Under-capacity cells from incomplete formation, incorrect electrolyte specific gravity, or separator failure: cells that hold OCV but collapse on sustained discharge
• Storage capacity loss in batteries that have sat in a warehouse before reaching the customer
• Discharge profile deviations: batteries that hold initial voltage but collapse before reaching the rated Ah endpoint
• IS and IEC compliance documentation: C₁₀ and C₂₀ discharge reports per IS 1651, IS 15549, and IEC 60095-1 that export customers and defence procurement channels require

For a QC lab at a UPS or inverter OEM, capacity testing is the correct incoming inspection method. You need confirmation that every incoming cell delivers its rated Ah before it enters assembly. A 3-second HRD discharge has no use for that purpose.

For R&D work (validating a new plate formulation, mapping capacity against temperature, building a full discharge curve), capacity testing is also the right instrument. The ELIND RCT records up to 25,000 rows of discharge data at a settable log interval and exports to spreadsheet. That data granularity is essential for lab analysis and has no application at a production gate.

What HRD Testing Catches That Capacity Testing Misses

At a factory producing 500 batteries per shift, a 10-hour capacity test per unit is not a production QC option. The test that belongs on the production line is the high-rate discharge test: 3 to 10 seconds per battery, with a pass/fail output that stops a defective unit before it reaches packaging.

The ELIND HRD Production Line Tester in its online configuration tests each battery as it moves off the conveyor. First, the OCV check: batteries outside the user-set voltage window (6V–16V, upper and lower limits independently settable) are flagged before the high-rate load connects. Then the high-rate discharge runs at the specified current. End voltage is compared against the user-set threshold, and the result (Pass or Fail) is logged with a timestamp. If a barcode scanner is connected, the result is logged against each battery’s serial number.

This catches failure modes that capacity testing at production speed cannot:

• Intercell welding defects: weak or open joints that cannot sustain 600A for six seconds but pass a low-rate capacity discharge without issue
• Under-charged batteries: OCV below lower window, flagged before load connection
• Over-charged batteries: OCV above upper window, a charging fault that the tester catches before the battery reaches the customer
• Post-assembly internal shorts: manifesting as rapid voltage collapse under high-rate load that a slow discharge would not detect at this speed

Capacity testing at production volume requires a dedicated test floor, a battery bank, and hours per batch. Inline HRD testing requires 3 to 10 seconds per unit and a footprint that integrates with your existing conveyor layout.

Where Each Test Belongs in Your QC Workflow

Neither instrument replaces the other. The right question is not which one you need. It is where each one belongs in your process.

For a manufacturer producing 200+ batteries per shift:

• End-of-line, inline: HRD Production Line Tester covering 100% of output
• QC lab, sampled: Battery Rated Capacity Tester for periodic batch audits, R&D validation, and IS/IEC compliance discharge documentation
• Incoming goods inspection: RCT if you are purchasing cells or plates from external suppliers and need to verify capacity against spec before use

For a QC lab or battery user (not manufacturing):

• Incoming battery verification: RCT for capacity confirmation per IS 1651 or IS 15549
• Periodic health check: HRD lab tester for high-rate performance and cranking capacity assessment
• Audit documentation: RCT for discharge reports suitable for compliance files and OEM warranty submissions

If your current process has one instrument but not both, the failure mode your QC is not catching is predictable from the gap.

How to Make the Capex Case Internally

The procurement question is fair: you already have a capacity tester. Why do you need an HRD tester too?

The financial argument is straightforward. The direct cost of a warranty failure includes replacement, reverse logistics, and any penalty clause in your OEM or distributor agreement. The indirect cost (a documented quality complaint in a market where OEM customers score and rank their suppliers) is harder to quantify but is never zero.

The cost of an HRD Production Line Tester, amortised across five years and divided across the volume of batteries it gates, comes to a fraction of a rupee per battery tested. If it stops one batch of defective batteries from reaching a customer, the instrument has paid for itself in that event.

The framing that works with a plant head or finance director is this: the tester is not an additional cost. It is the mechanism that keeps your warranty liability in the plant, where it is manageable, instead of in the field, where it is not.

If you are sequencing the investment and both instruments are not in this year’s capex plan, start with the end-of-line HRD tester. It operates on 100% of your output and generates the higher return per rupee because every battery it passes is a battery you have tested. The capacity tester for your QC lab follows in the next cycle.

Conclusion

The HRD tester vs capacity tester question has a clear answer: each instrument tests something the other cannot. High-rate discharge testing reveals plate integrity and connection failures under load stress: the defects that produce field failures. Battery rated capacity testing reveals energy storage performance over time: the data that compliance and R&D require. A QC process using only one of them has a documented blind spot. The next step is identifying which failure mode your current process is most likely to miss, then specifying the instrument that closes that gap.
