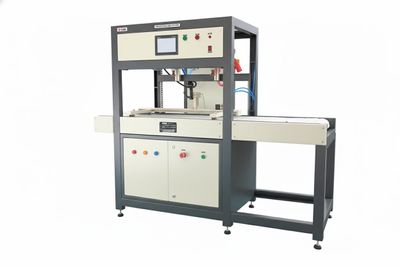

Battery HRD Production Line Tester

  'ELIND’ Battery High Rate Discharge Production Line Tester, designed to operate on 1 Phase AC Input of 200-240 Volts 50 Hz, and capable of discharging 1 no. 12 Volt battery at a constant current to conduct High Rate Production Line Discharge test.

The unit will be complete with a PLC-based metering and controlling system to set the required test time, end voltage, discharge current and the Open Circuit Voltage window, and also to monitor the test parameters (battery voltage, discharge current, test time and test result).

The unit can also be provided with:

· Adjustable pneumatic jig system to connect to the test battery, along with a motorized conveyor belt system with motion sensors to stop the battery under the test jug automatically. Once the test is conducted, the conveyor operates to move the battery ahead in the line.

· HMI Interface along with Barcode Scanning & Recording function.

· User end PC-based data logging software, with the following features:

• Displaying the real time test data (Battery Open Circuit Voltage, End Voltage, Discharge Current, Test Time) for quick monitoring on the front end of the application, along with the test result.
• Storing the test data of each battery in a spreadsheet format.

12 Volts 50 Amps

12 Volts 100 Amps

12 Volts 300 Amps

12 Volts 600 Amps

12 Volts 1000 Amps

12 Volts 1500 Amps

12 Volts 2000 Amps

12 Volts 3000 Amps

Voltage: +-1%

Current: +-1% within the range (10% to 100% of full scale reading)

System Requirements: Windows 7, 10 or 11

RAM: 8 GB or higher

Interface: USB 2.0 or 3.0

We offer competitive pricing for all of our products without compromising on quality. Contact us today for a quote.

We offer customizable capacity testing solutions to suit our customers' specific requirements. Contact us today for more details.
