Programmable Battery Formation Rectifier: What 10 Steps Deliver
A formation rectifier is not specified by its maximum current rating alone. The specification that separates a programmable battery formation rectifier running at consistent batch yield from one hitting a ceiling every cycle is the step count and per-channel independence of the controller. For tubular and VRLA chemistry, this gap shows up in batch rejects, rework time, and audit records. This post covers the programmable battery formation rectifier, what the 10 steps control, why per-channel independence outweighs total current output, what a two-percentage-point yield improvement recovers per month in rupees, and what data logging costs you when it is absent.
Why Single-Step Formation Sets a Batch Yield Ceiling
Single-step constant current formation works for basic SLI plates at low stakes. Tubular plates run up to 120 hours of formation. VRLA batteries carry strict voltage ceilings. A single fixed current value satisfies neither chemistry correctly.
Three factors shift during a formation cycle: plate temperature rises, electrolyte stratification builds, and late-stage gassing intensifies. Each of these demands a different current response from the rectifier. A fixed current provides none.
The result is a batch yield ceiling. Rejects appear not because the equipment is faulty but because the profile cannot track the chemistry curve as the cycle progresses. No floor-level process adjustment raises that ceiling. The only remedy is the profile step count confirmed at the time of purchase.
What a Programmable Battery Formation Rectifier Profile Actually Controls

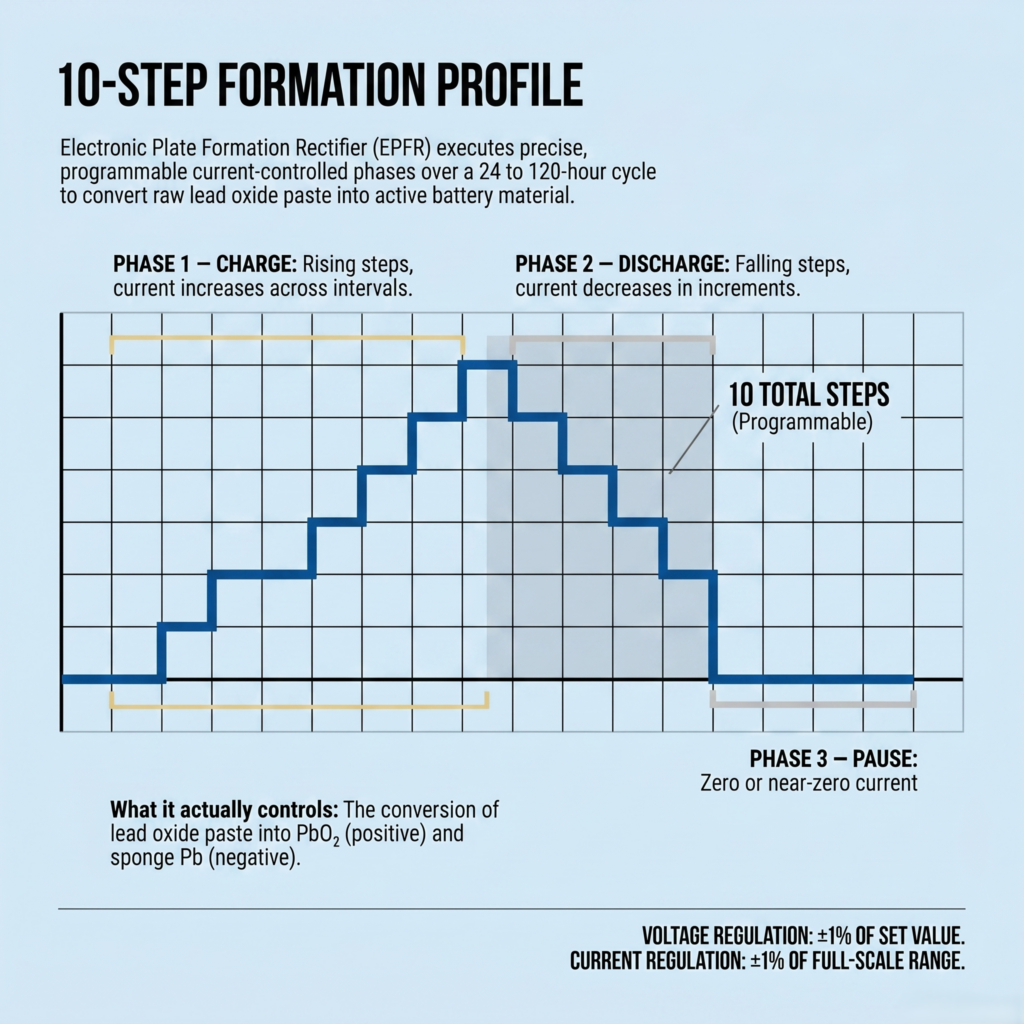

The EPFR formation rectifier runs 10 programmable steps across three step types: charge, discharge, and pause. Each step carries an independent current value, duration, and termination condition.
Charge steps run at varying current levels. A typical tubular chemistry profile reduces current in the late stage to prevent over-formation of the gauntlet material. Discharge steps deliver electrochemical conditioning between charge phases. Pause steps allow thermal recovery where bath temperature needs to stabilise before the next charge phase begins.
Step transitions trigger on a time limit, while current regulation holds to within plus or minus 1% of the set value across the full cycle, even as bath impedance shifts with temperature. That is the typical precision benchmark for industrial formation applications.
Per-Channel Independence Matters More Than Total Current Rating
A programmable battery formation rectifier with four independent channels differs operationally from a single-output unit feeding a parallel bank, even where total delivered current is identical.
In a parallel bank setup, all channels share one profile. If bath impedance or temperature varies between channels as the cycle progresses, the rectifier cannot compensate per channel. The channel that drifts receives a profile no longer matched to its actual electrochemical state. Formation quality on that channel degrades without any fault indicator triggering.
Per-channel independence means each channel runs its own profile, responds to its own termination conditions, and compensates for its own bath impedance shifts in real time. A plant running SLI and tubular chemistry on adjacent channels assigns a 48-hour profile to channels 1 and 2 and a 120-hour profile to channels 3 and 4. That configuration is not possible on a shared-bank unit regardless of current rating.

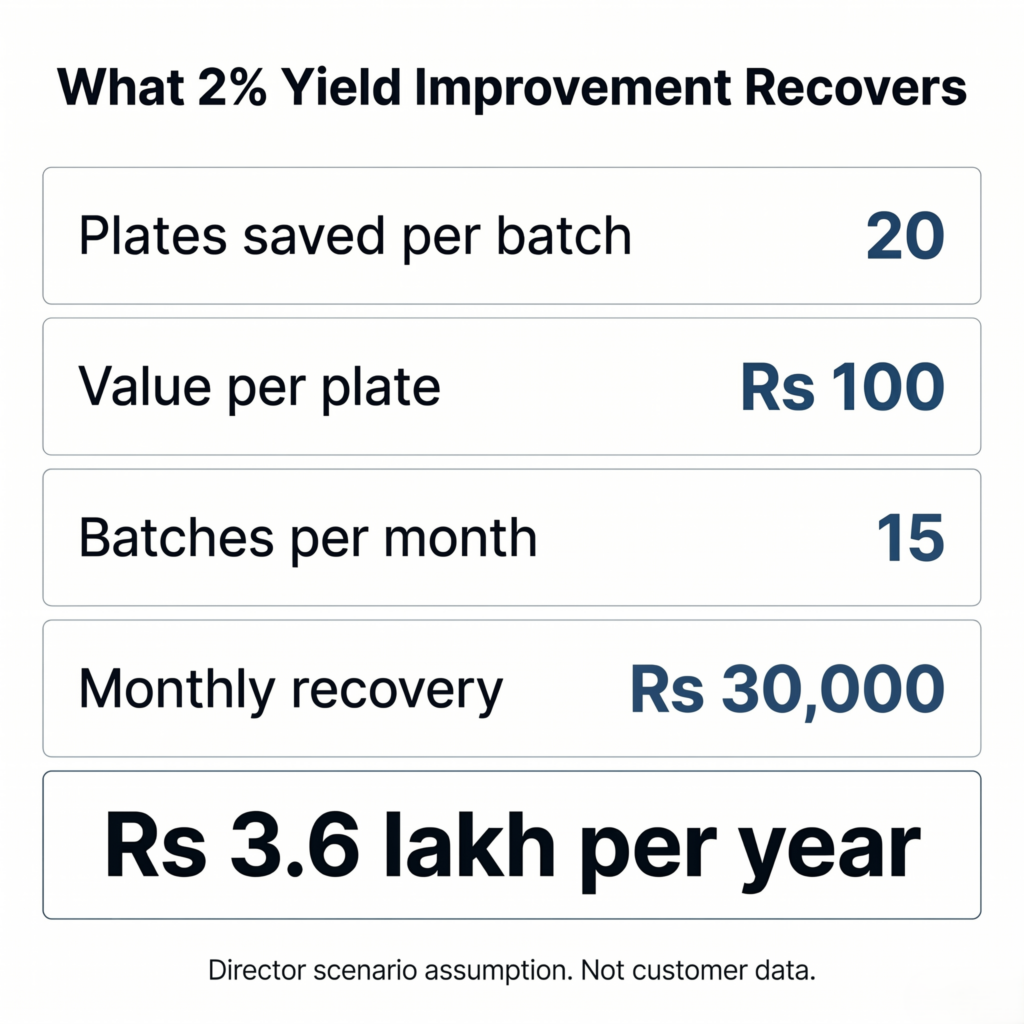

What a 2-Point Yield Improvement Recovers Per Month
The rupee impact of a correctly specified programmable battery formation rectifier profile is calculable. The figures below are Director scenario assumptions, not customer data.
Starting point: 1,000 tubular positive plates per batch at Rs 100 per plate (conservative estimate). Current yield: 93%, producing 30 rejects per batch. With a 10-step profile matched to the tubular chemistry, yield improves to 95%. That saves 20 plates per batch.
At Rs 100 per plate and 15 batches per month, the monthly material recovery is Rs 30,000. Annual recovery: Rs 3.6 lakh. This scenario excludes rework labour savings, acid disposal cost reduction, and the audit compliance value of data logging. The profile step count is set at order. It cannot be upgraded in the field without replacing the controller.
A 3-to-6-channel EPFR configuration running this chemistry recovers the profile specification cost in under 12 months on material savings alone, at these scenario assumptions.
Data Logging Is an Audit Requirement, Not a Premium Feature
The programmable battery formation rectifier data logging option records the following per step: current value, voltage value, Ah accumulated, time elapsed at each step transition, and batch identifier. The log exports as a CSV file via USB, with each row timestamped to the second.
When an ISO auditor requests formation records for a batch produced three months ago, that log provides instrument-generated current and voltage at each step, Ah delivered per phase, and the exact timestamp at each step transition. Reconstructing the same information from shift logbooks and operator notes takes 4 to 6 hours per batch. For an unplanned audit covering 10 or 15 batches, that is a full working day consumed in paperwork recovery, not production.
Export auditors requesting IATF 16949 or IS 1651 compliance records look for instrument-generated data. A formation rectifier without data logging does not fail an audit by itself. The manufacturer who cannot produce step-level batch records for a disputed lot faces a harder audit conversation and, in export relationships, a credibility gap that handwritten reconstruction cannot close. Data logging is specified at order on the EPFR. It is not field-installable after the fact.
What This Means for Your Next Formation Rectifier Decision
A programmable battery formation rectifier is not a specification reserved for R&D facilities. For any plant running tubular or VRLA chemistry at commercial batch volumes, the 10 step programmable profile, per-channel independence, and data logging are the three specifications that determine whether the rectifier earns its keep across a 15-to-20-year service life.
Specify the battery formation charger programmable profile against your chemistry and batch volume at order. The gap between a correctly specified EPFR and an underspecified unit does not appear in year one. It appears in year three, at the next ISO audit, or the next time a batch dispute reaches your largest customer.
Talk to ELIND about Your Programmable Battery Formation Rectifier Specification
ELIND Technologies has been manufacturing programmable battery plate formation rectifiers from Bengaluru since 1980. Every programmable battery formation rectifier unit is built to your specification: output voltage matched to your jar count, channel count matched to your batch size and throughput, and transformer cooling matched to your duty cycle and Indian ambient up to 45 degrees C.
If you are evaluating a formation rectifier for a new line or capacity expansion, send us your current setup and throughput requirement. by email or call us / drop us a message on WhatsApp. We will send you a technical proposal within 48 hours.
