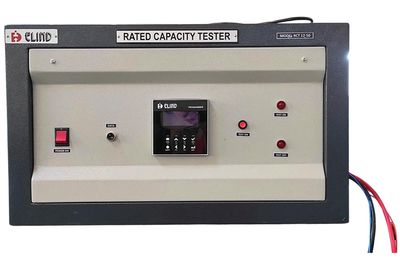

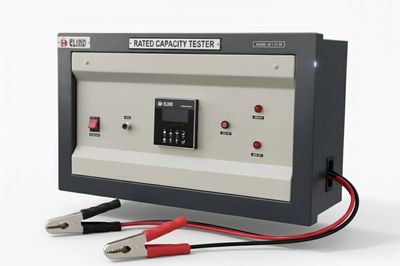

Rated Capacity Tester

---

 'ELIND' Battery Rated Capacity Tester, designed to operate on 1-Phase AC Input of 200-240 Volts 50 Hz, capable of discharging 1 no. 12 Volt/24 Volt battery at a constant current (continuous duty) to check the AH capacity of the battery.

The unit will be complete with a PLC-based metering and controlling system to set the required end voltage, discharge current and to monitor the battery voltage, discharge current, AH discharged and total time taken. At the end of the test, the total AH discharged and time taken to reach the required end voltage will be displayed.

The unit can also be provided with User end PC-based data logging software, with the following features:

· Displaying the real time test data (Battery Voltage, Discharge Current, Test Time, AH) for quick monitoring on the front end of the application, along with the test result.

· Storing the test data of the battery in a spreadsheet format at a pre-set time interval.

12 Volts 5 Amps

12 Volts 10 Amps

12 Volts 20 Amps

12 Volts 30 Amps

12 Volts 50 Amps

12 Volts 100 Amps

12 Volts 200 Amps

24 Volts 5 Amps

24 Volts 10 Amps

24 Volts 20 Amps

24 Volts 30 Amps

24 Volts 50 Amps

24 Volts 100 Amps

24 Volts 200 Amps

Voltage: +-1%

Current: +-1% within the range (10% to 100% of full scale reading)

System Requirements: Windows 7, 10 or 11

RAM: 8 GB or higher

Interface: USB 2.0 or 3.0

We offer competitive pricing for all of our products without compromising on quality. Contact us today for a quote.

We offer customizable capacity testing solutions to suit our customers' specific requirements. Contact us today for more details.
